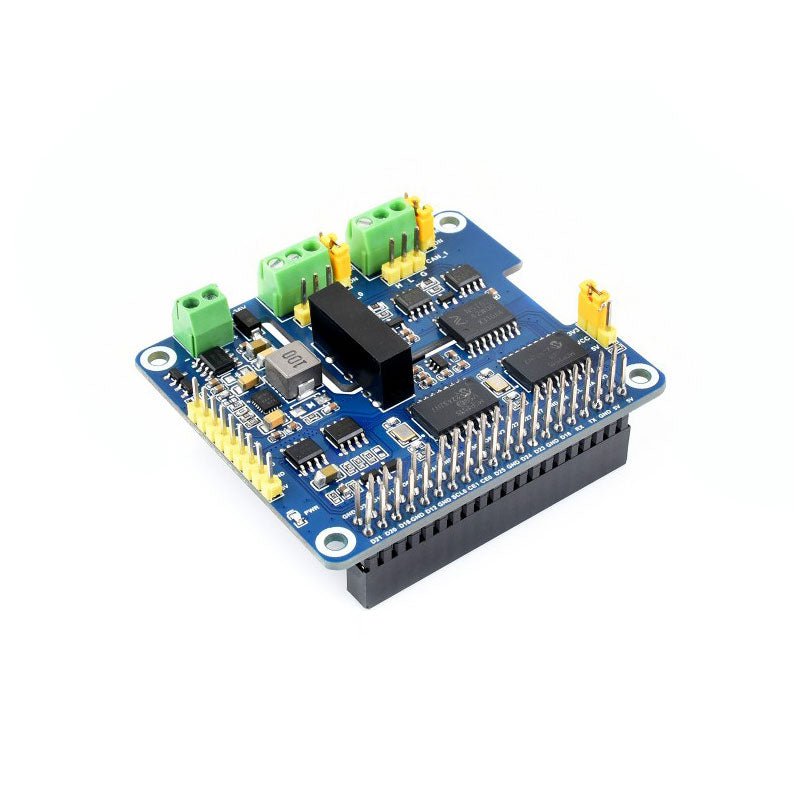

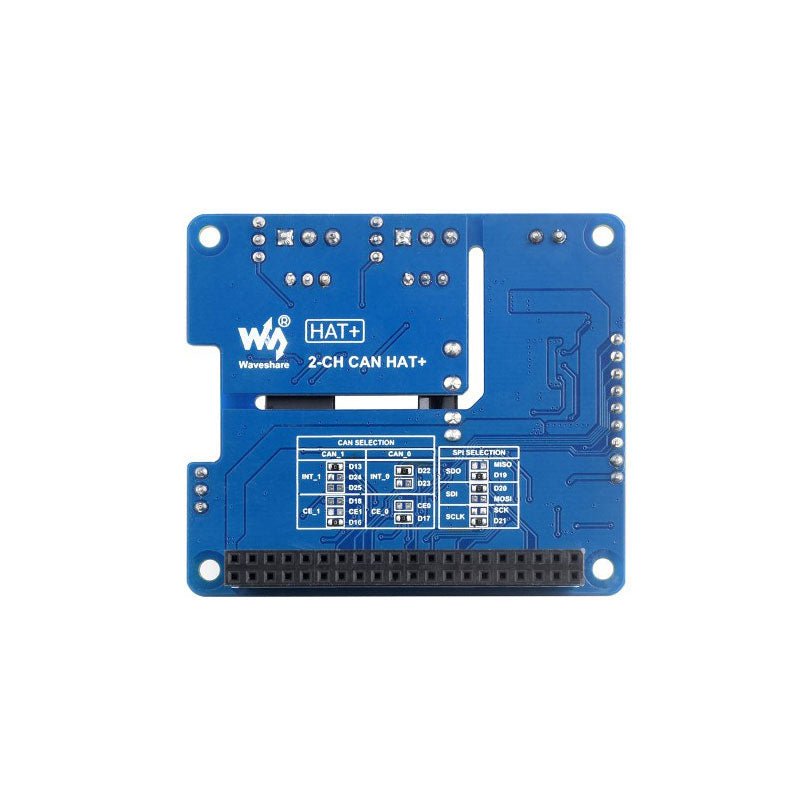

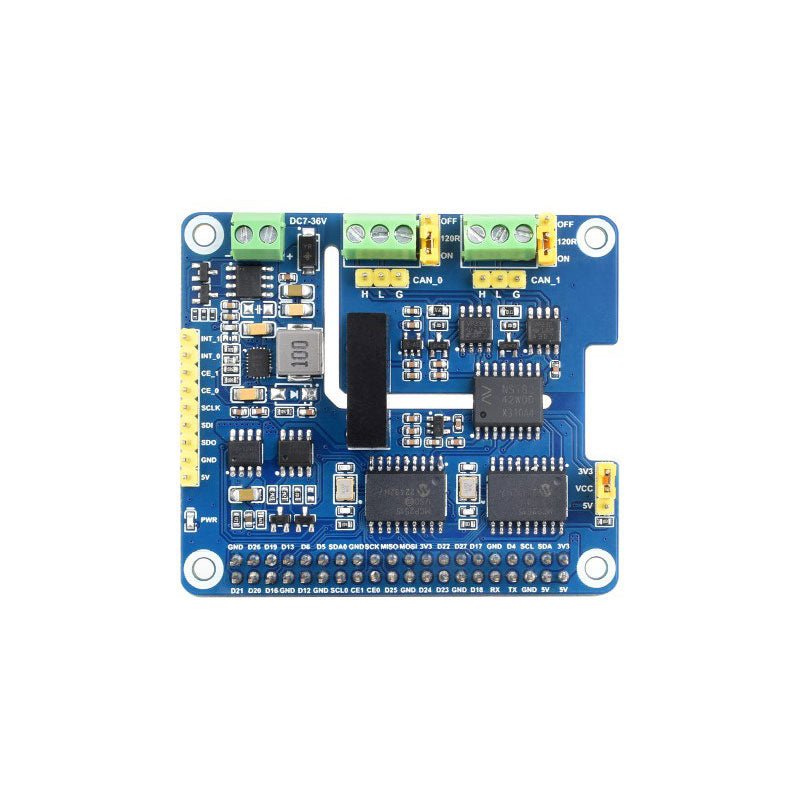

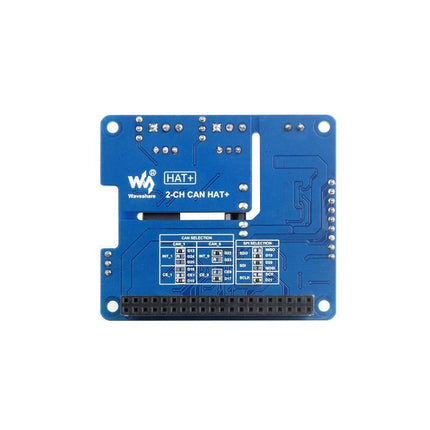

Waveshare 2-ch Isolated CAN Bus Expansion HAT for Raspberry Pi

  • HerstellerWaveshare

Beschreibung

2-ch CAN HAT+ is an isolated expansion board for Raspberry Pi. It supports dual-channel CAN communication and features multi-protection circuits, wide voltage input, and more.

Features

  • Designed for Raspberry Pi
  • Standard HAT+ design, with onboard EEPROM chip.
  • Adopts MCP2515 and SN65HVD230 dual-chip solution, allowing 2-channel CAN communication.
  • Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal.
  • Onboard digital isolation chip, signal isolation communication is safer, more stable, and better anti-interference.
  • Onboard SM24CANB (transient voltage suppressor), provides ESD protection and transient peak voltage protection.
  • Onboard voltage conversion circuit, select 3.3 V/5 V operating voltage by jumper.
  • Onboard 120 Ω terminal resistor, enable through the jumper cap.
  • Elicits the SPI control interface, for connecting with host control boards like STM32/Arduino.
  • Provides online supporting information manuals and demos.

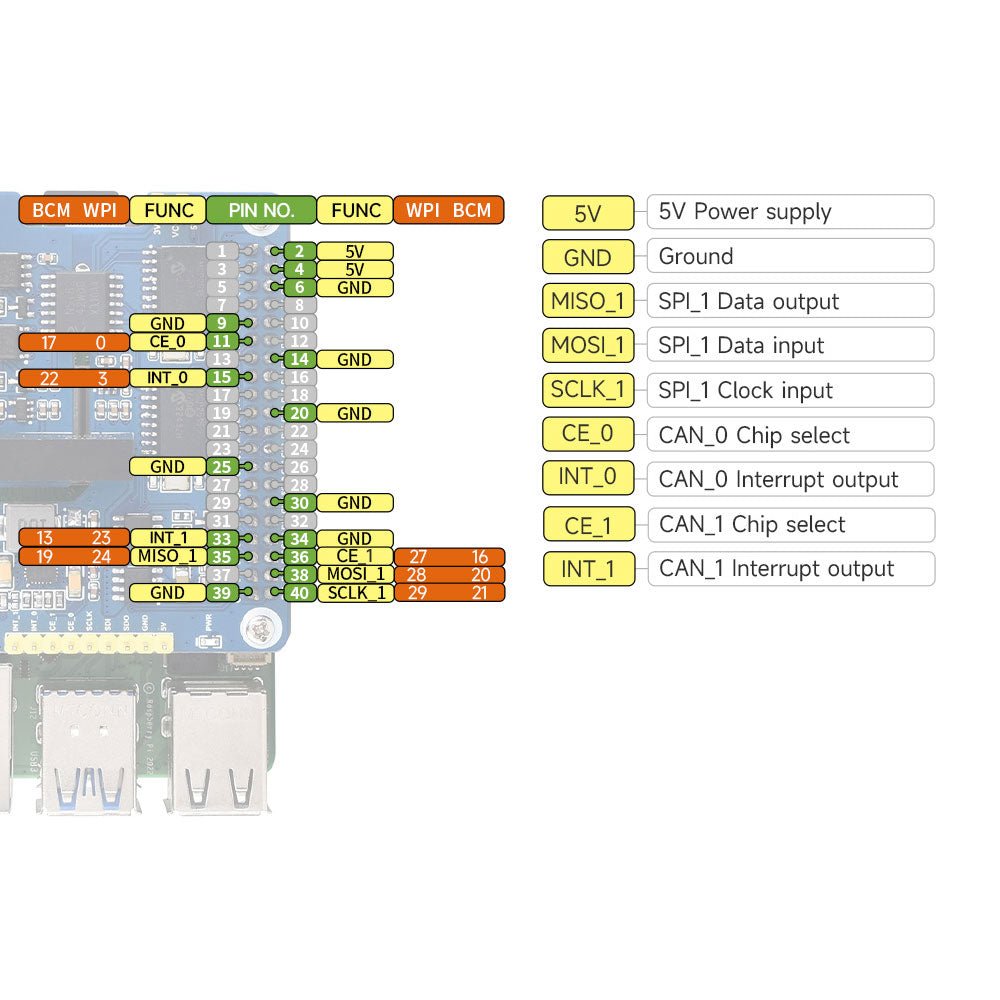

Specifications

CAN controller MCP2515
Control Bus SPI
Power supply method External power supply terminal or Raspberry Pi GPIO
Terminal voltage input DC 7~36 V
Operating voltage 5 V
Logic level 3.3 V/5 V
Dimensions 65.0 x 56.5 mm

Downloads

Produktformular

2-ch CAN HAT+ is an isolated expansion board for Raspberry Pi. It supports dual-channel CAN communication and features multi-protection circuits,... Weiterlesen

€ 29,95 inkl. MwSt.
Mitglieder € 26,96

    • Heute verschicken? Innerhalb von Jul 19, 2024 17:00:00 +0200 bestellen

    Details

    SKU: 20893
    EAN: 27338

    Beschreibung

    2-ch CAN HAT+ is an isolated expansion board for Raspberry Pi. It supports dual-channel CAN communication and features multi-protection circuits, wide voltage input, and more.

    Features

    • Designed for Raspberry Pi
    • Standard HAT+ design, with onboard EEPROM chip.
    • Adopts MCP2515 and SN65HVD230 dual-chip solution, allowing 2-channel CAN communication.
    • Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal.
    • Onboard digital isolation chip, signal isolation communication is safer, more stable, and better anti-interference.
    • Onboard SM24CANB (transient voltage suppressor), provides ESD protection and transient peak voltage protection.
    • Onboard voltage conversion circuit, select 3.3 V/5 V operating voltage by jumper.
    • Onboard 120 Ω terminal resistor, enable through the jumper cap.
    • Elicits the SPI control interface, for connecting with host control boards like STM32/Arduino.
    • Provides online supporting information manuals and demos.

    Specifications

    CAN controller MCP2515
    Control Bus SPI
    Power supply method External power supply terminal or Raspberry Pi GPIO
    Terminal voltage input DC 7~36 V
    Operating voltage 5 V
    Logic level 3.3 V/5 V
    Dimensions 65.0 x 56.5 mm

    Downloads
