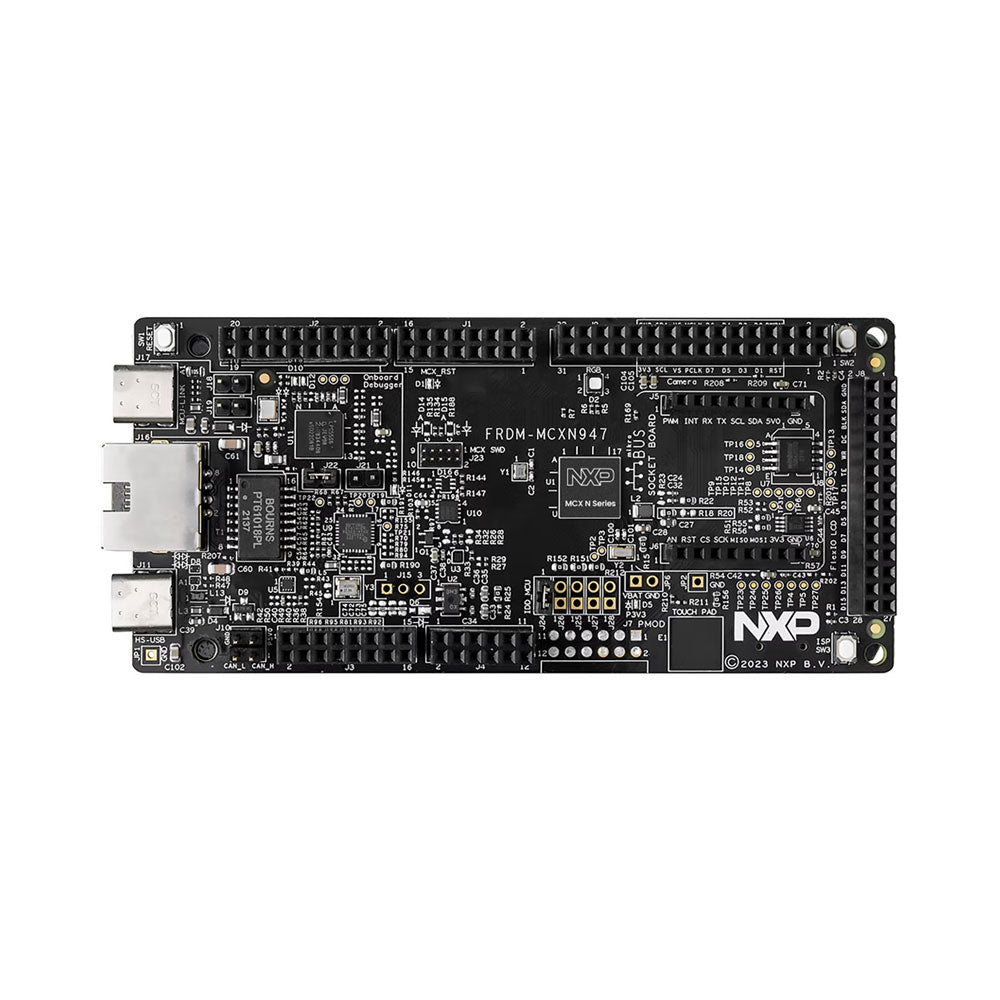

The FRDM-MCXN947 is a compact and versatile development board designed for rapid prototyping with MCX N94 and N54 microcontrollers. It features industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory, and an onboard MCU-Link debugger.

Technische Daten

Microcontroller	MCX-N947 Dual Arm Cortex-M33 cores @ 150 MHz each with optimized performance efficiency, up to 2 MB dual-bank flash with optional full ECC RAM, External flash
Microcontroller	Accelerators: Neural Processing Unit, PowerQuad, Smart DMA, etc.
Memory Expansion	*DNP Micro SD card socket
Connectivity	Ethernet Phy and connector
	HS USB-C connectors
	SPI/I²C/UART connector (PMOD/mikroBUS, DNP)
	WiFi connector (PMOD/mikroBUS, DNP)
	CAN-FD transceiver
Debug	On-board MCU-Link debugger with CMSIS-DAP
Debug	JTAG/SWD connector
Sensor	P3T1755 I³C/I²C Temp Sensor, Touch Pad
Expansion Options	Arduino Header (with FRDM expansion rows)
	FRDM Header
	FlexIO/LCD Header
	SmartDMA/Camera Header
	Pmod *DNP
	mikroBUS
User Interface	RGB user LED, plus Reset, ISP, Wakeup buttons

Lieferumfang

1x FRDM-MCXN947 Development Board
1x USB-C Cable
1x Quick Start Guide
