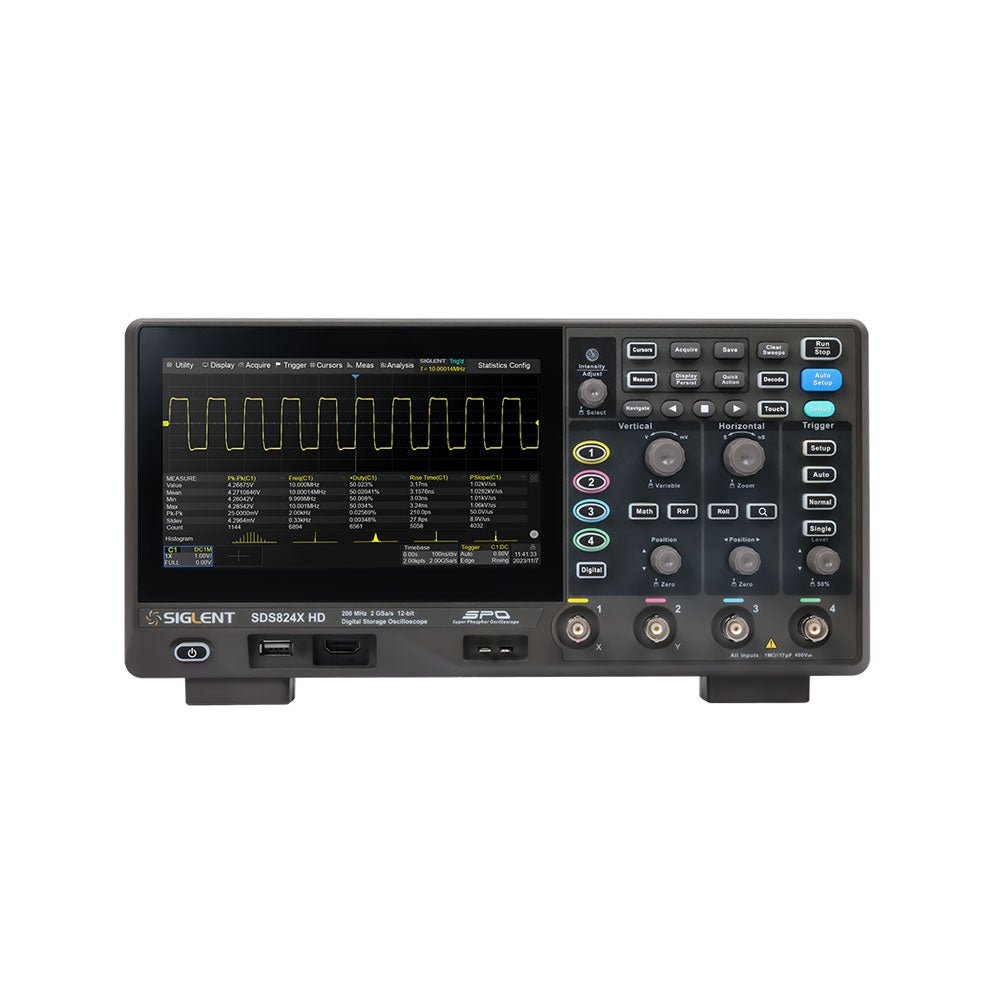

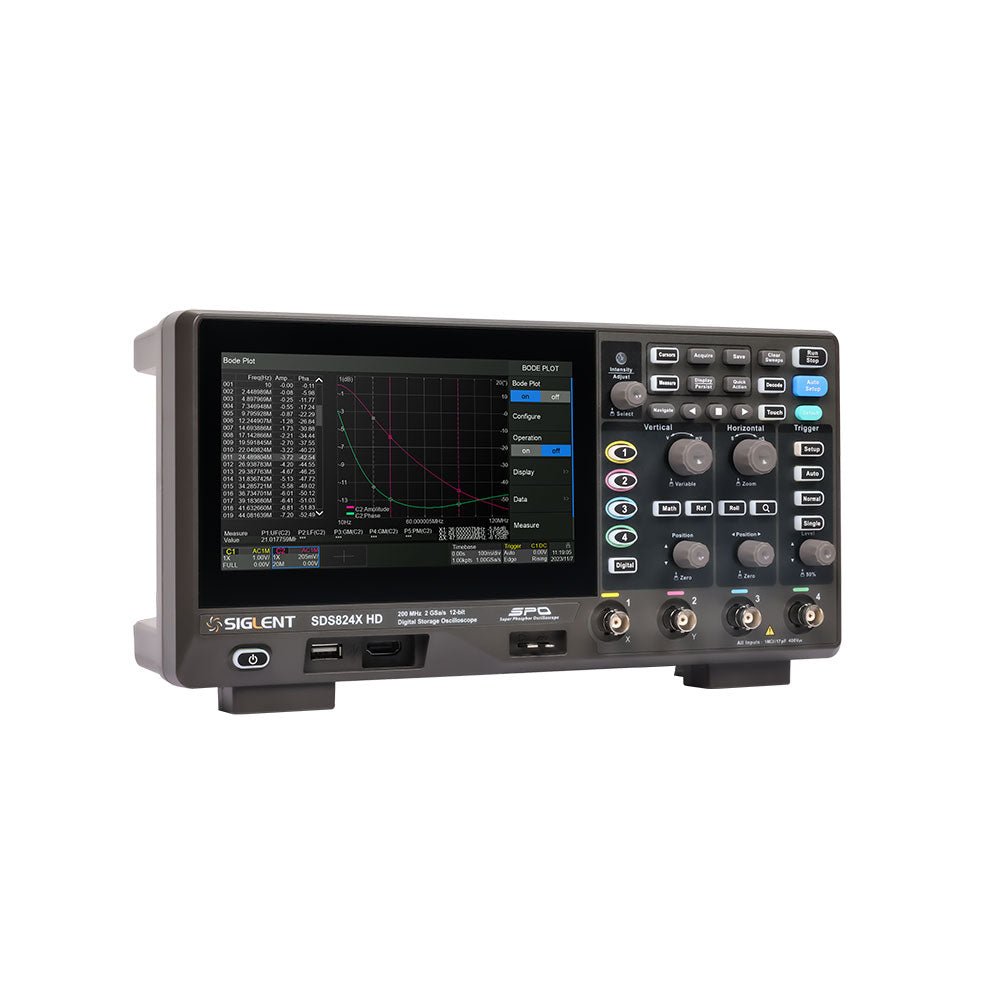

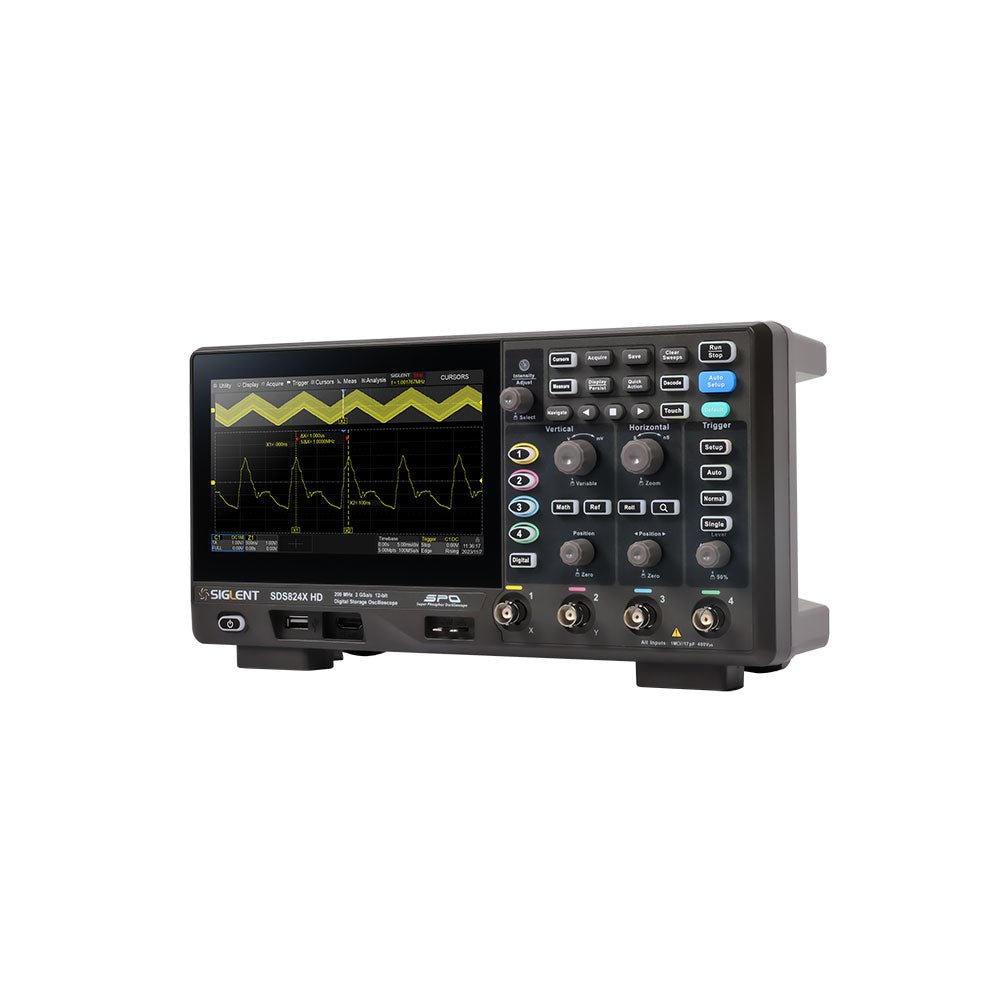

Siglent SDS814X HD 4-Kanal Oszilloskop (100 MHz)

  • HerstellerSiglent

Beschreibung

The Siglent SDS814X HD digital storage oscilloscope is based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. With a 100 MHz bandwidth, and a maximum record length of 50 Mpts, and the capability to analyze 4 analog channels alongside 16 digital channels, the SDS814X HD is perfectly suited for mixed signal analysis.

Features

  • 12-bit High Resolution
    • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
    • Front ends with 70 μVrms noise floor @ 100 MHz bandwidth
    • 2/4 analog channels, up to 700 MHz bandwidth
    • SPO technology
  • Waveform capture rate up to 80,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature display modes.
  • Up to 50 Mpts record length
  • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported), Qualified, Nth edge, Delay, Setup/Hold time.
  • Serial bus triggering and decoder, supports protocols I²C, SPI, UART, CAN, LIN.
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event.
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames.
  • Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref.
  • 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor.
  • Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis
  • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (optional)
  • 25 MHz waveform generator (optional)
  • 7" TFT-LCD display with 1024 x 600 resolution; Capacitive touch screen supports multi-touch gestures.
  • Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard. Supports NTP.

Technische Daten

Analog Channels 4
Bandwidth 100 MHz
Vertical resolution 12-bit
Sample rate (Max.) One channel mode: 2 GSa/s
Two channel mode: 1 GSa/s
Four channel mode: 500 MSa/s
Memory depth (Max.) One channel mode: 50 Mpts/ch
Two channel mode: 25 Mpts/ch
Four channel mode: 10Mpts/ch
Waveform capture rate (Max.) Normal mode: 80,000 wfm/s
Sequence mode: 500,000 wfm/s
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial
Serial trigger and decode (Standard) I²C, SPI, UART, CAN, LIN
Measurement 50+ parameters, statistics, histogram, trend, and track supported
Math 4 traces 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor
Data analysis Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis
Digital channel (optional) 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts
USB AWG module (option) One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output
I/O 2x USB 2.0 Host, USB 2.0 Device, 10/100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO)
Probe (Standard) Passive probe PB470 for each channel
Display 7 TFT-LCD with capacitive touch screen (1024x600)

Lieferumfang

  • 1x Siglent SDS814X Oscilloscope
  • 4x Passive probe (100 MHz) PP510
  • 1x Power cord (EU)
  • 1x USB cable
  • 1x Certificate of calibration
  • 1x Quick start

Downloads


Produktformular

The Siglent SDS814X HD digital storage oscilloscope is based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise... Weiterlesen

Nicht auf Lager

€ 609,00 (inkl. MwSt.)
Mitglieder identisch

    Details

    SKU: 20975
    EAN: 020975

    Beschreibung

    The Siglent SDS814X HD digital storage oscilloscope is based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. With a 100 MHz bandwidth, and a maximum record length of 50 Mpts, and the capability to analyze 4 analog channels alongside 16 digital channels, the SDS814X HD is perfectly suited for mixed signal analysis.

    Features

    • 12-bit High Resolution
      • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
      • Front ends with 70 μVrms noise floor @ 100 MHz bandwidth
      • 2/4 analog channels, up to 700 MHz bandwidth
      • SPO technology
    • Waveform capture rate up to 80,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes.
    • Up to 50 Mpts record length
    • Digital trigger system
    • Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported), Qualified, Nth edge, Delay, Setup/Hold time.
    • Serial bus triggering and decoder, supports protocols I²C, SPI, UART, CAN, LIN.
    • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event.
    • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames.
    • Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref.
    • 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor.
    • Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis
    • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
    • 16 digital channels (optional)
    • 25 MHz waveform generator (optional)
    • 7" TFT-LCD display with 1024 x 600 resolution; Capacitive touch screen supports multi-touch gestures.
    • Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
    • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard. Supports NTP.

    Technische Daten

    Analog Channels 4
    Bandwidth 100 MHz
    Vertical resolution 12-bit
    Sample rate (Max.) One channel mode: 2 GSa/s
    Two channel mode: 1 GSa/s
    Four channel mode: 500 MSa/s
    Memory depth (Max.) One channel mode: 50 Mpts/ch
    Two channel mode: 25 Mpts/ch
    Four channel mode: 10Mpts/ch
    Waveform capture rate (Max.) Normal mode: 80,000 wfm/s
    Sequence mode: 500,000 wfm/s
    Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial
    Serial trigger and decode (Standard) I²C, SPI, UART, CAN, LIN
    Measurement 50+ parameters, statistics, histogram, trend, and track supported
    Math 4 traces 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor
    Data analysis Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis
    Digital channel (optional) 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts
    USB AWG module (option) One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output
    I/O 2x USB 2.0 Host, USB 2.0 Device, 10/100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO)
    Probe (Standard) Passive probe PB470 for each channel
    Display 7 TFT-LCD with capacitive touch screen (1024x600)

    Lieferumfang

    • 1x Siglent SDS814X Oscilloscope
    • 4x Passive probe (100 MHz) PP510
    • 1x Power cord (EU)
    • 1x USB cable
    • 1x Certificate of calibration
    • 1x Quick start
