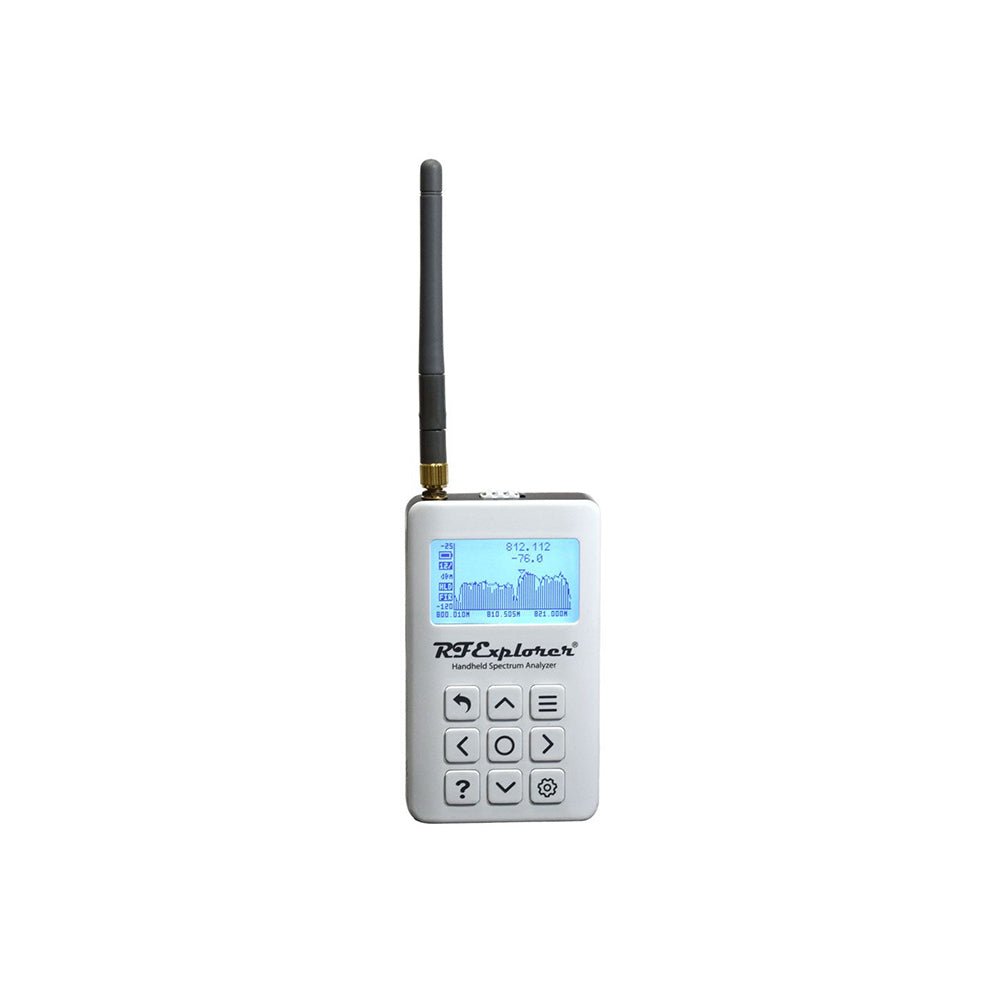

Seeed Studio RF Explorer WSUB1G+ Slim Spectrum Analyzer

  • HerstellerSeeed Studio

Beschreibung

Features

  • Internal LNA amplifier and selectable attenuator
  • Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
  • New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
  • Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
  • Ideal choice for HAM bands from 160meters to 33cm
  • Pocket size and light weight
  • Solid metal case
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
  • High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
  • Multi-platform Windows/Linux/MacOS Open Source software and API libraries
  • Can be extended with internal Expansion Modules for additional band and functionality

Specifications

  • Frequency band: 0.05 MHz - 960 MHz
  • Frequency span: 0.1 MHz - 960 MHz
  • Internal selectable LNA 25 dB gain
  • Internal selectable Attenuator 30 dB
  • Graphics LCD 128 x 64 pixels, great visibility outdoors
  • Support included for Windows, Linux and MacOS X
  • Backlight for great visibility indoor
  • Internal Lithium Ion 1800mA/h rechargeable battery
  • Standard SMA 50 Ω connector
  • Wideband 144/433MHz dual band telescopic antenna included
  • UHF 400-900 MHz rubber duck articulated antenna included
  • Amplitude resolution: 0.5dBm
  • Dynamic range: -125 dBm to 10 dBm
  • Absolute Max input power: +30dBm
  • Average noise level (typical LNA): -125 dBm
  • Frequency stability and accuracy (typical): +-10 ppm
  • Amplitude stability and accuracy (typical): +-2d Bm
  • Frequency resolution: 1kHz
  • Resolution bandwidth (RBW): automatic 2.6 kHz to 600 kHz

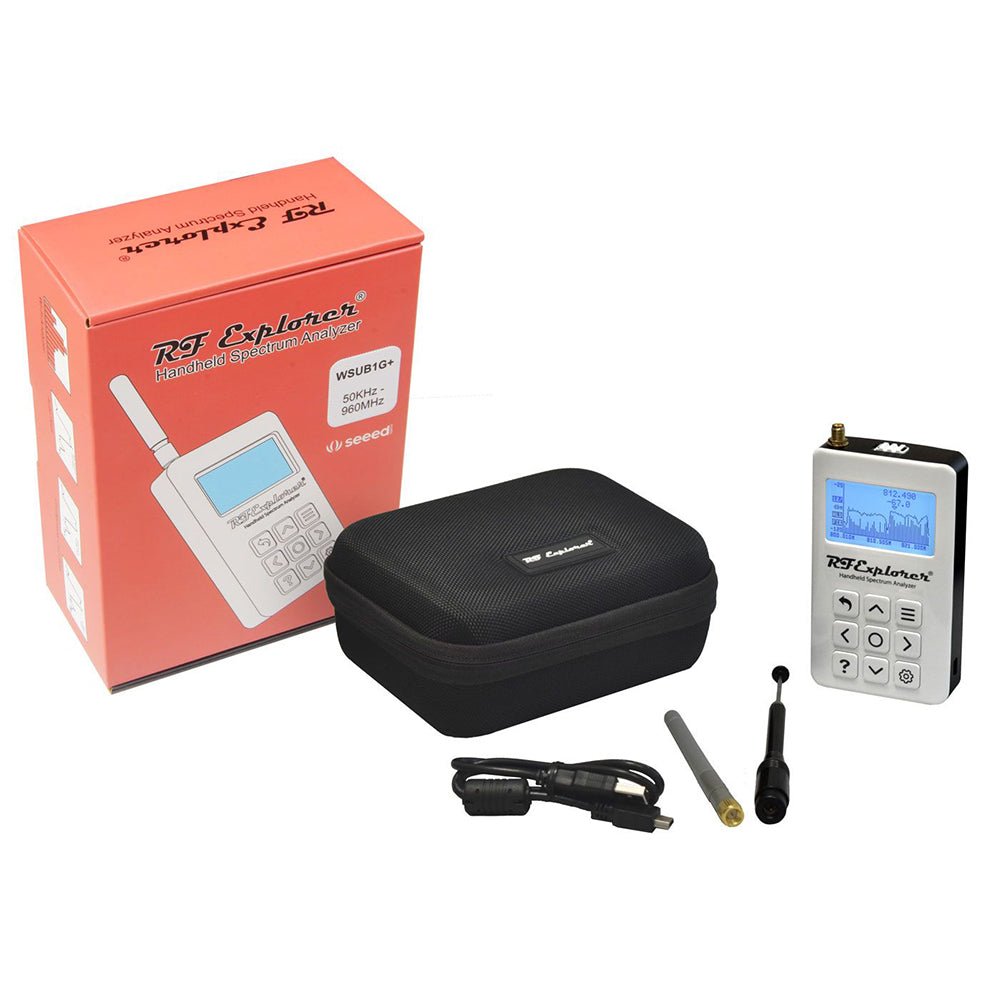

Included

  • 1x RF Explorer WSUB1G+ Spectrum Analyzer
  • 1x Mini USB cable
  • 1x Dual band 144/430MHz Telescopic antenna
  • 1x UHF 400-900Mhz antenna
  • 1x EVA case
Produktformular

Features Internal LNA amplifier and selectable attenuator Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up... Weiterlesen

€ 201,11 (inkl. MwSt.)
Jetzt kaufen (bei Eleshop)
Mit Klick auf "Jetzt kaufen" werden Sie zu unserem Partner-Store Eleshop weitergeleitet. Elektor erhält bei einem Kauf über diesen Link eine kleine Provision. Für Sie entstehen dadurch keine Mehrkosten. Es gelten die Allgemeinen Geschäftsbedingungen (AGB) von Eleshop.

    Details

    SKU: 19132
    EAN: 114991830

    Beschreibung

    Features

    • Internal LNA amplifier and selectable attenuator
    • Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
    • New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
    • Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
    • Ideal choice for HAM bands from 160meters to 33cm
    • Pocket size and light weight
    • Solid metal case
    • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
    • High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
    • Multi-platform Windows/Linux/MacOS Open Source software and API libraries
    • Can be extended with internal Expansion Modules for additional band and functionality

    Specifications

    • Frequency band: 0.05 MHz - 960 MHz
    • Frequency span: 0.1 MHz - 960 MHz
    • Internal selectable LNA 25 dB gain
    • Internal selectable Attenuator 30 dB
    • Graphics LCD 128 x 64 pixels, great visibility outdoors
    • Support included for Windows, Linux and MacOS X
    • Backlight for great visibility indoor
    • Internal Lithium Ion 1800mA/h rechargeable battery
    • Standard SMA 50 Ω connector
    • Wideband 144/433MHz dual band telescopic antenna included
    • UHF 400-900 MHz rubber duck articulated antenna included
    • Amplitude resolution: 0.5dBm
    • Dynamic range: -125 dBm to 10 dBm
    • Absolute Max input power: +30dBm
    • Average noise level (typical LNA): -125 dBm
    • Frequency stability and accuracy (typical): +-10 ppm
    • Amplitude stability and accuracy (typical): +-2d Bm
    • Frequency resolution: 1kHz
    • Resolution bandwidth (RBW): automatic 2.6 kHz to 600 kHz

    Included

    • 1x RF Explorer WSUB1G+ Spectrum Analyzer
    • 1x Mini USB cable
    • 1x Dual band 144/430MHz Telescopic antenna
    • 1x UHF 400-900Mhz antenna
    • 1x EVA case
