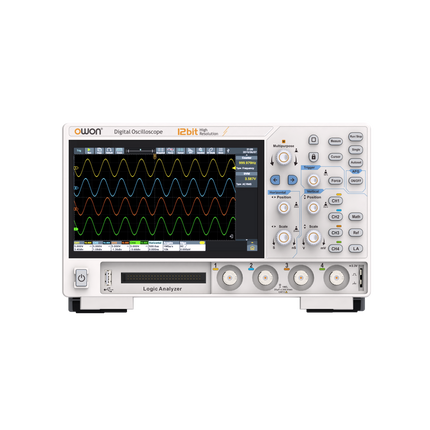

ADS914A |
ADS924A |
| Bandwidth (-3 dB) |
125 MHz |
250 MHz |
| Channels |
4 |
| Max. sample rate |
2 GSa/s (single-channel) 1 GSa/s (dual-channel) 500 MSa/s (full-channel) |
| DC Gain Accuracy |
3% (≤1 mV) |
| 2% (≥2 mV) |
| Max memory depth |
100M |
| Vertical resolution |
12 bits |
| Relay time accuracy |
±25 ppm (typical) |
| Input Impedance |
1 MΩ±2%, parallel with20 pF±5 pF |
| Probe Attenuation Coefficient |
1.00μX-1M.00X,step by 1-2-5, support custom |
| Trigger type |
Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I²C, SPI CAN, LIN |
| Bus decoding |
RS232/UART, I²C, SPI, CAN, LIN |
| Auto measurement |
Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑) |
| Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓), FRR(A↑-B↑), FRF(A↑-B↓) |
| FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑), LFF(A↓-B↓) |
| Waveform Math |
+, -, *, /, &&, ||, ^, ！, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject) |
| Frequency counter |
6-digit frequency counter |
| Maximum frequency: maximum analog bandwidth of oscilloscope |
| Voltmeter |
Support DC, AC+DCrms, ACrms, Resolution: 4 digits (ACV/DCV) |
| Logical Analyzer Specifications |
| Number of channels |
16 input channels (D0-D15) (D0 to D7, D8 to D15) |
| Max. input voltage |
±40V peak CAT I, transient overvoltage 800Vpk |
| Input Impedance |
100kΩ, 8 pF |
| Vertical resolution |
1 bit |
| Other |

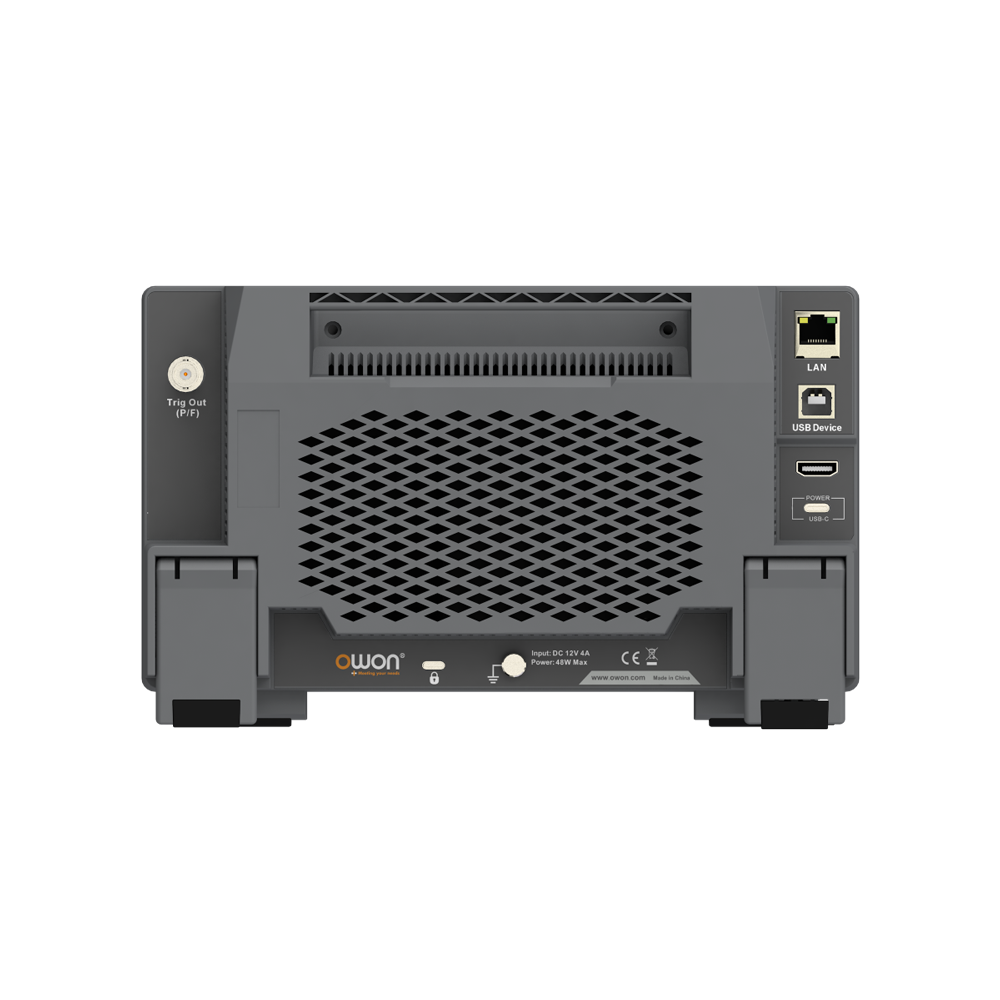

| Communication Interface |
HDMI, USB device, USB Host, Trig Out (P/F), LAN |
| Display |
7 inch (1024x600), capacitive multi-touch screen |
| Power supply interface |
USB-C |
| Dimensions |
260 x 160 x 78 mm |
| Weight |
1.5 kg |
