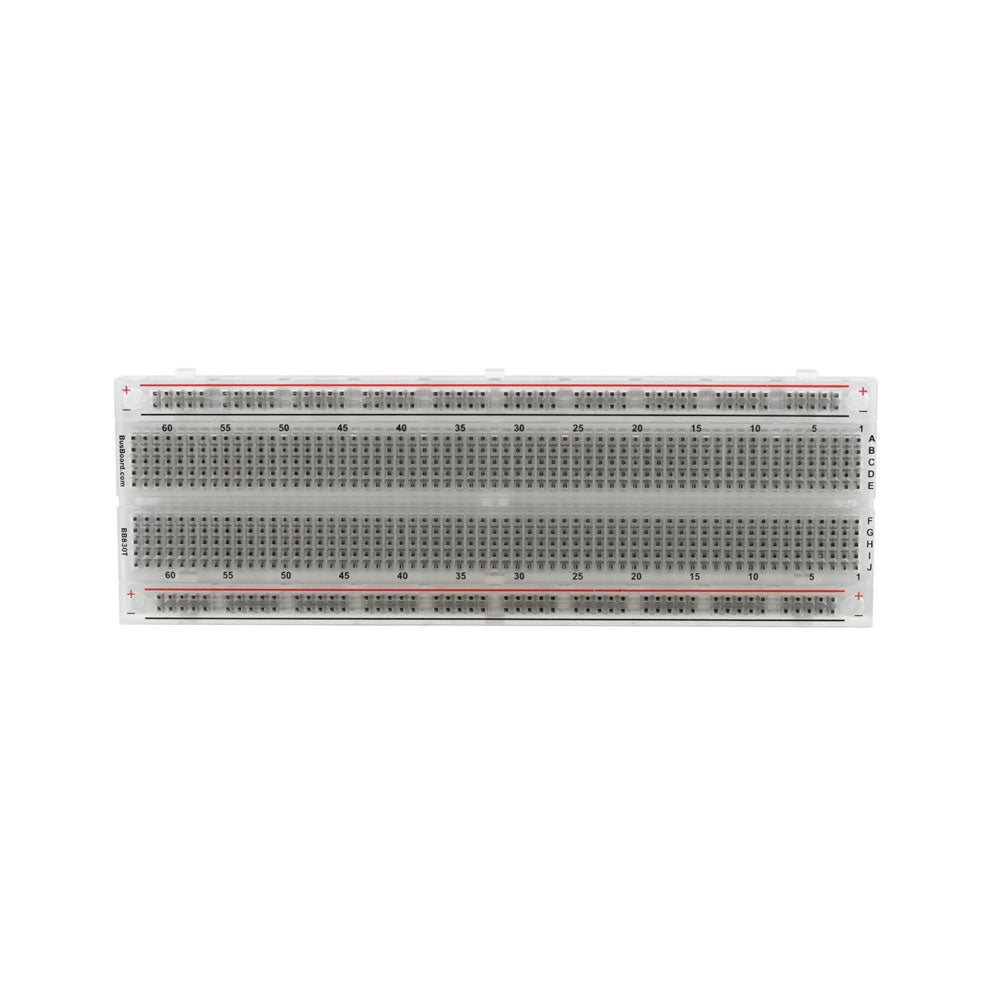

BreadBoard BB830T (830 Tie Points) Transparent

  • HerstellerBusBoard

Beschreibung

The BB830T is a solderless (plug-in) transparent breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB830T has a 630 tie-point IC-circuit area plus four 50 tie-point power rails.

Specifications

  • 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
  • ABS plastic/transparent body with black printed legend. Color legend on distribution strips.
  • Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
  • Rated at 36 Volts, 2 Amps.
  • Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter).
  • Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.
Produktformular

The BB830T is a solderless (plug-in) transparent breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4... Weiterlesen

€ 10,12 (inkl. MwSt.)
Jetzt kaufen (bei Eleshop)
Mit Klick auf "Jetzt kaufen" werden Sie zu unserem Partner-Store Eleshop weitergeleitet. Elektor erhält bei einem Kauf über diesen Link eine kleine Provision. Für Sie entstehen dadurch keine Mehrkosten. Es gelten die Allgemeinen Geschäftsbedingungen (AGB) von Eleshop. Die tatsächlichen Preise bei Eleshop können abweichen.

    Details

    SKU: 17092
    EAN: 017092

    Beschreibung

    The BB830T is a solderless (plug-in) transparent breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB830T has a 630 tie-point IC-circuit area plus four 50 tie-point power rails.

    Specifications

    • 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
    • ABS plastic/transparent body with black printed legend. Color legend on distribution strips.
    • Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
    • Rated at 36 Volts, 2 Amps.
    • Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter).
    • Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.
